System Diagram [11/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. SMART KEY SYSTEM (for Start Function)

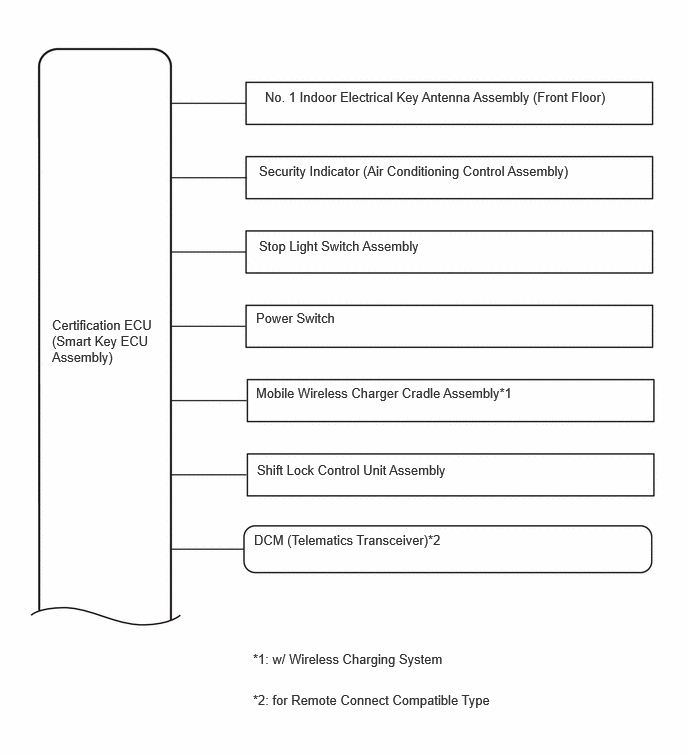

    GTY1115374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

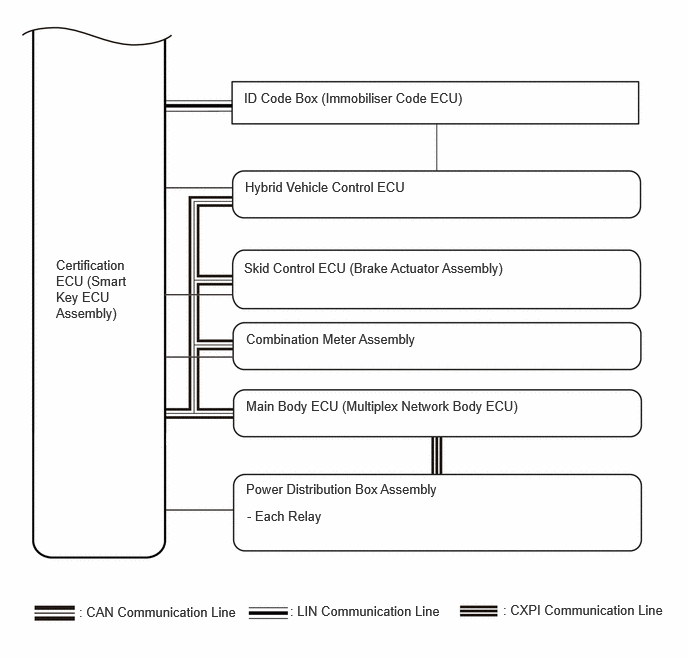

    GTY1117561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART KEY SYSTEM (for Entry Function)

    Refer to SYSTEM DIAGRAM [11/2022 - ]
