System Diagram [11/2018 - 12/2021]

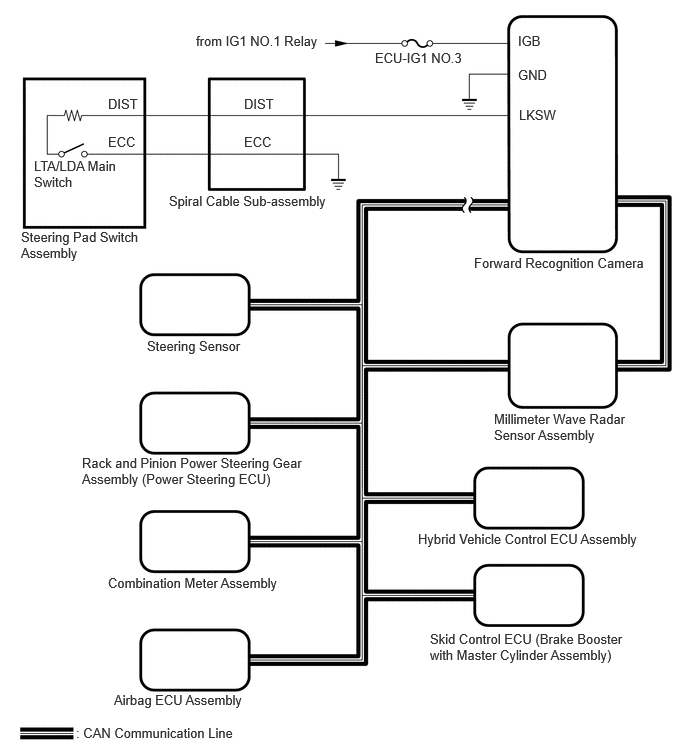

for HV Model:

Fig 1: for HV Model [11/2018 - 12/2021]

GTY1114959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

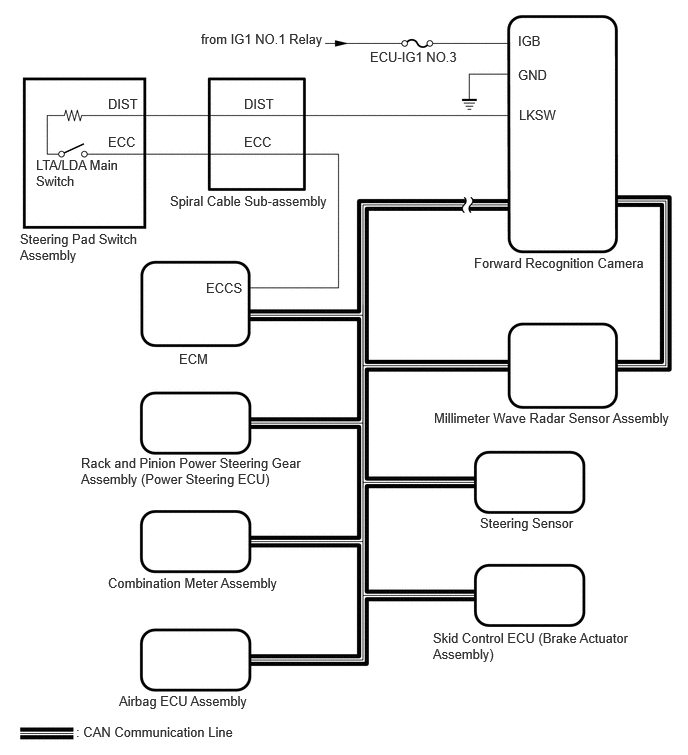

for Gasoline Model:

Fig 2: for Gasoline Model [11/2018 - 12/2021]

GTY1114649

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
