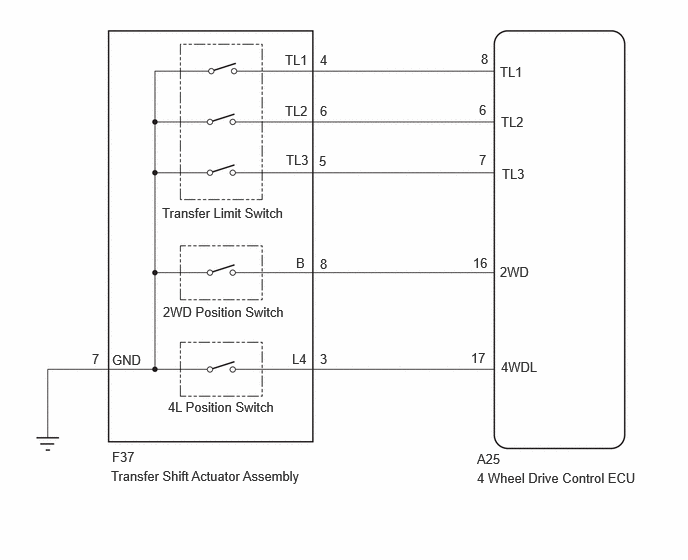

DTC P1784-62: 4WD/AWD Transfer Case Shift Motor Limit Switch and Transfer Case H4-L4 Position Switch Signal Compare Failure [12/2024 - ]: Wiring Diagram

GTY1278818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
