Removal [12/2024 - ]: Procedure

DRAIN ENGINE COOLANT
- for 1Motor-HEV Model:
  Refer to REPLACEMENT [12/2024 - ]
- for Gasoline Model:
  Refer to REPLACEMENT [12/2024 - ]

REMOVE NO. 2 ENGINE COOLANT TEMPERATURE SENSOR (except Mexico Models)

NOTE:

If the No. 2 engine coolant temperature sensor has been struck or dropped, replace it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side)

NOTE:

If the engine coolant temperature sensor has been struck or dropped, replace it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

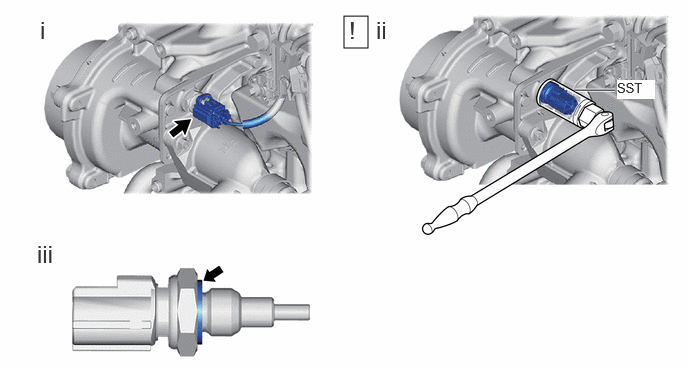

REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side)

Disconnect the engine coolant temperature sensor connector.
Using SST, remove the engine coolant temperature sensor from the water inlet housing.
- SST: 09817-33191
NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
Remove the gasket from the engine coolant temperature sensor.

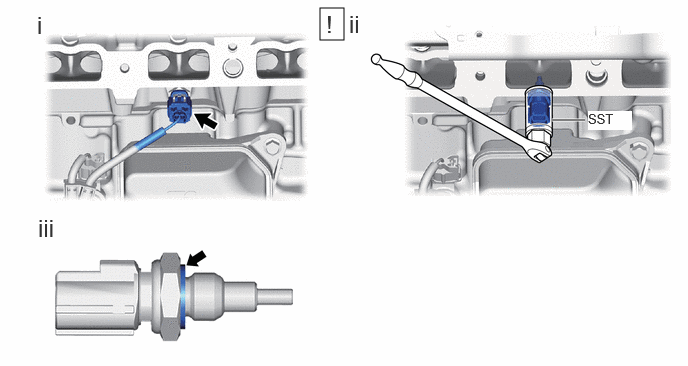

REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)

Disconnect the engine coolant temperature sensor connector.
Using SST, remove the engine coolant temperature sensor from the cylinder head sub-assembly.
- SST: 09817-33191
NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
Remove the gasket from the engine coolant temperature sensor.
