Inspection [12/2024 - ]: Procedure

  1. INSPECT INTAKE AIR TEMPERATURE SENSOR
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition Result
      1 (THTA) - 2 (E2) 25°C (77°F) 15.94 to 18.53 kΩ kΩ

      If the result is not as specified, replace the intake air temperature sensor.

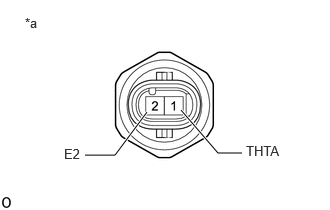

      GTY1274037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Intake Air Temperature Sensor)
