Removal [12/2024 - ]: Procedure

  1. REMOVE INTAKE AIR TEMPERATURE SENSOR

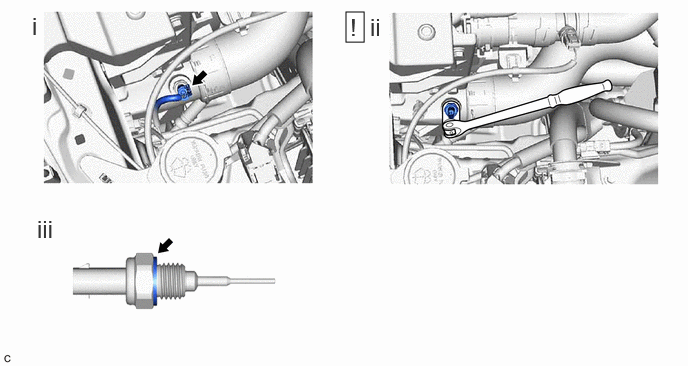

    1. GTY1272710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the intake air temperature sensor connector.
      2. Using a 17 mm deep socket wrench, remove the intake air temperature sensor from the intercooler assembly.
        NOTE:

        If the intake air temperature sensor has been struck or dropped, replace it.

      3. Remove the gasket from the intake air temperature sensor.
