Removal [06/2024 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [06/2024 - ]

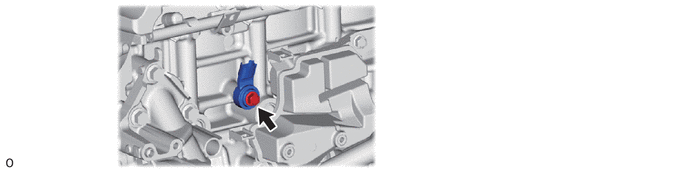

  2. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.
    1. GTY1155369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
