Components [06/2018 - 09/2019]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota Corolla, 2024 Toyota Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

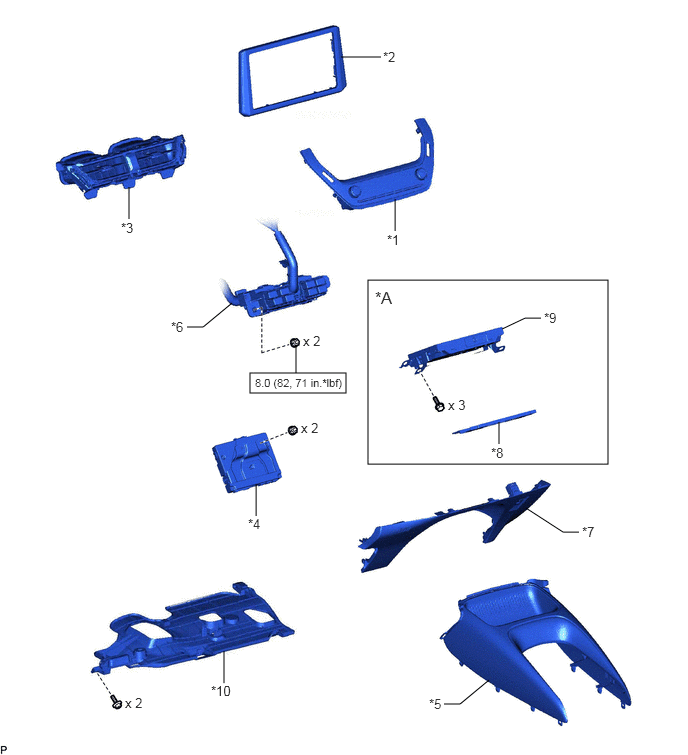

Fig 1: DCM (Telematics Transceiver) Replacement Components With Torque Specifications [06/2018 - 09/2019]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Navigation System | - | - |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *3 | CENTER INSTRUMENT PANEL REGISTER ASSEMBLY | *4 | DCM (TELEMATICS TRANSCEIVER) |
| *5 | FRONT CONSOLE UPPER PANEL GARNISH | *6 | INSTRUMENT PANEL WIRE |
| *7 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | *8 | NAVIGATION ECU COVER |
| *9 | NAVIGATION ECU WITH BRACKET | *10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
