Components [01/2019 - 09/2022]
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 Toyota Corolla, 2024 Toyota Corolla, 2023 Toyota Corolla, 2022 Toyota Corolla, and 2021 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

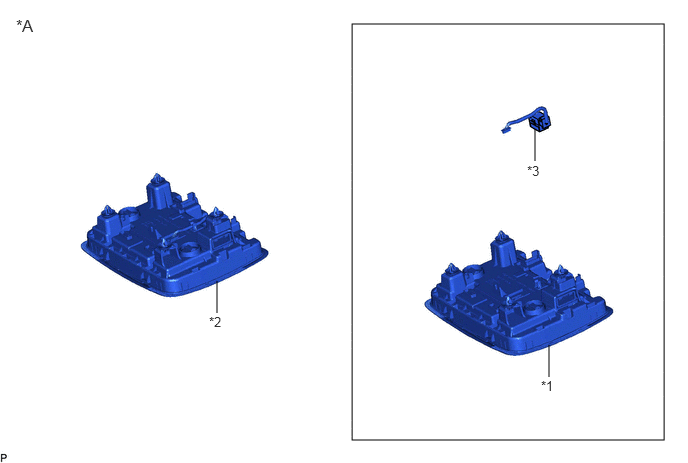

| Callout |
Description |
Callout |
Description |
| *A |
for Normal Roof |
- |
- |
| *1 |
MANUAL (SOS) SWITCH (MAP LIGHT SUB-ASSEMBLY) |
*2 |
MAP LIGHT ASSEMBLY |
| *3 |
TELEPHONE MICROPHONE ASSEMBLY |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

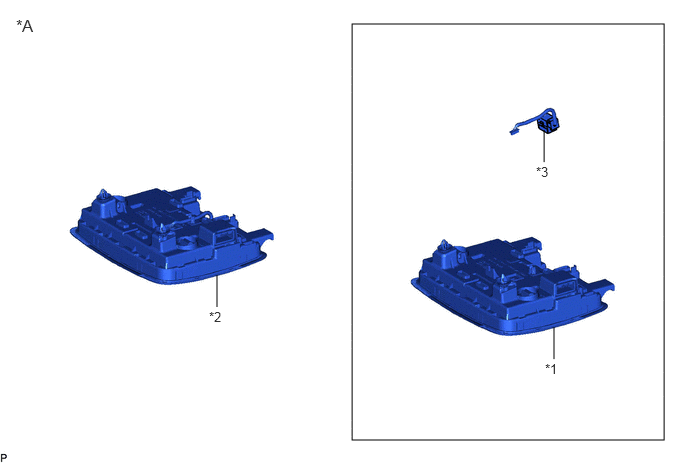

| Callout |
Description |
Callout |
Description |
| *A |
for Moon Roof |
- |
- |
| *1 |
MANUAL (SOS) SWITCH (MAP LIGHT SUB-ASSEMBLY) |
*2 |
MAP LIGHT ASSEMBLY |
| *3 |
TELEPHONE MICROPHONE ASSEMBLY |
- |
- |
