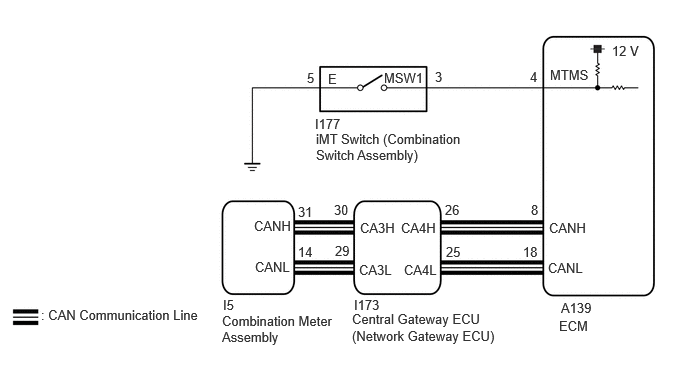

Pattern Select Switch iMT Mode Circuit [09/2024 - ]: Wiring Diagram

GTY1250950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
