Components [09/2022 - ]

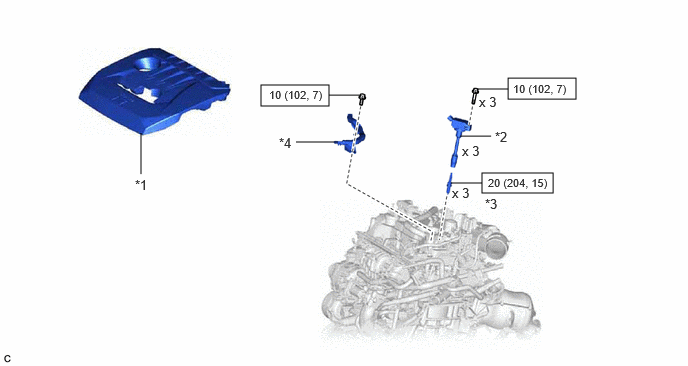

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY1109252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 ENGINE COVER SUB-ASSEMBLY *2 IGNITION COIL ASSEMBLY
*3 SPARK PLUG *4 ENGINE WIRE
N*m (kgf*cm, ft.*lbf): Specified torque - -
