Components [09/2022 - ]

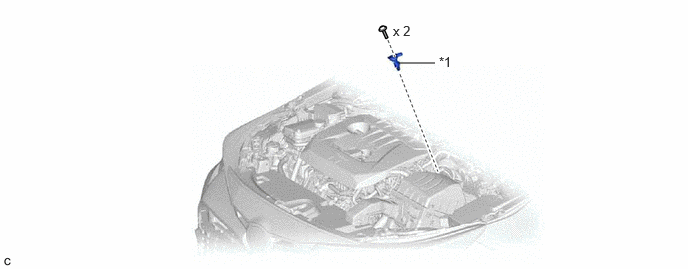

Fig 1: Mass Air Flow Meter Replacement Components
GTY1108200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
