Front Camera Module Communication Stop Mode [11/2021 - ]: Procedure

  1. CHECK FOR OPEN IN CAN BUS LINES (FORWARD RECOGNITION CAMERA BRANCH LINE)
    1. Turn the ignition switch to off.
    2. Disconnect the k1 forward recognition camera connector.
    3. Measure the resistance according to the value(s) in the table below.

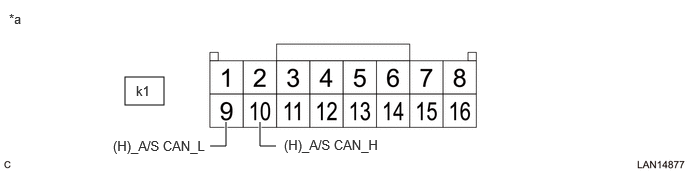

      GTY1050628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Forward Recognition Camera)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      k1-10 ((H)_A/S CAN_H) - k1-9 ((H)_A/S CAN_L) Ignition switch off 52 to 62 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  2

  2. CHECK FOR OPEN IN CAN BUS LINES (EYESIGHT POWER UNIT CAN MAIN LINE)
    1. Measure the resistance according to the value(s) in the table below.

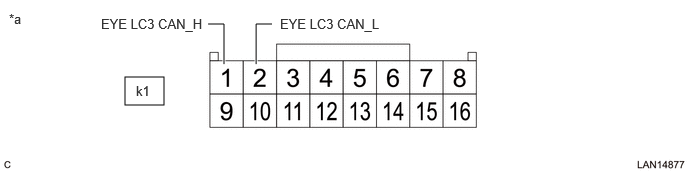

      GTY1050629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Forward Recognition Camera)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      k1-1 (EYE LC3 CAN_H) - k1-2 (EYE LC3 CAN_L) Ignition switch off 114 to 126 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (FORWARD RECOGNITION CAMERA)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

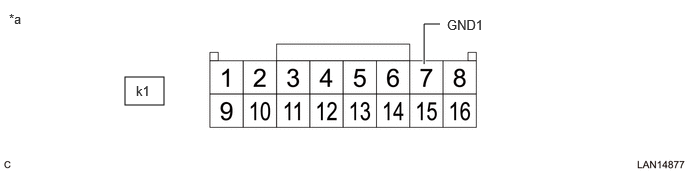

      GTY1050952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Forward Recognition Camera)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      k1-7 (GND1) - Chassis ground Ignition switch off Below 1 Ω
    2. Measure the voltage according to the value(s) in the table below.

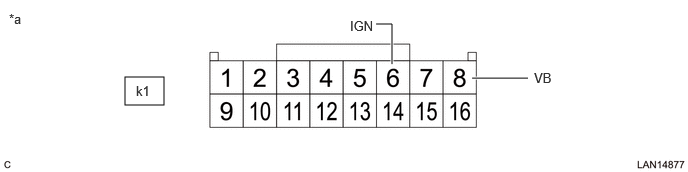

      GTY1050634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Forward Recognition Camera)      		 - -

      Standard Voltage

      Tester Connection Condition Specified Condition
      k1-8 (VB) - Chassis ground Always 10 to 15 V
      k1-6 (IGN) - Chassis ground Ignition switch ON 10 to 15 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FORWARD RECOGNITION CAMERA. Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
