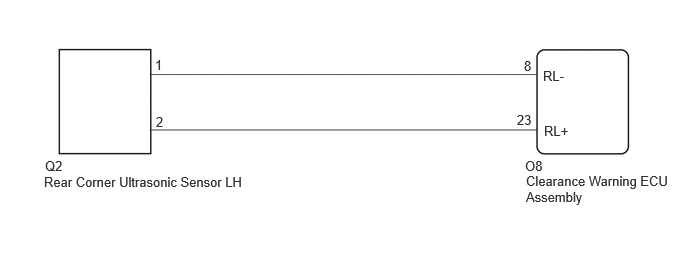

DTC B2C0A: RL Sonar Sensor Circuit / No Signal; DTC B2C0B: RL Sonar Sensor Circuit / Sonar Control Module Circuit [11/2021 - ]: Wiring Diagram

GTY1151906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
