Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. DISCONNECT TRANSMISSION WIRE (for Automatic Transmission)

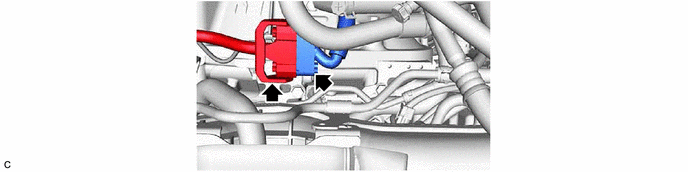

    1. GTY1142415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. SEPARATE WATER BY-PASS PIPE SUB-ASSEMBLY

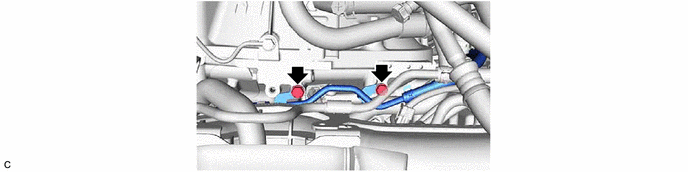

    1. GTY1142217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CRANKSHAFT POSITION SENSOR
    NOTE:

    To prevent the water by-pass pipe sub-assembly from being damaged or loose, pay careful attention while moving the water by-pass pipe sub-assembly.

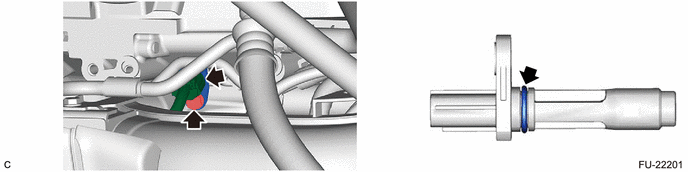

    1. GTY1160283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
