Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR

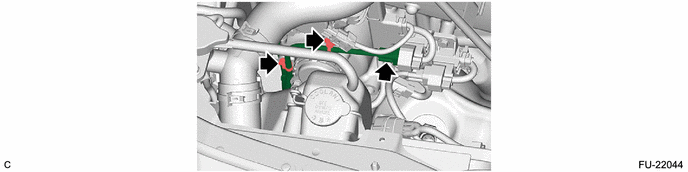

    1. GTY1050466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 1

  4. REMOVE ENGINE UNDER COVER RH

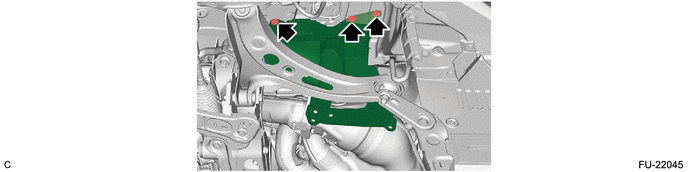

    1. GTY1050458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HEATED OXYGEN SENSOR

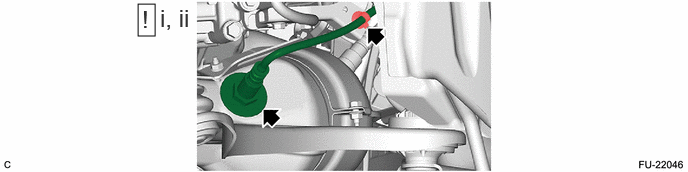

    1. GTY1050938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp.
      2. Using SST, remove the heated oxygen sensor from the exhaust manifold.
        • SST: 09224-00012
