Inspection [11/2021 - ]: Procedure
- INSPECT MASS AIR FLOW METER

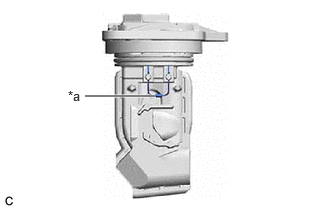

- Perform a visual check for any foreign matter on the intake air temperature sensor (thermistor) of the mass air flow meter shown in the illustration.
*a Intake Air Temperature Sensor (Thermistor) OK
There is no foreign matter.
If the result is not as specified, replace the mass air flow meter.
- Check the intake air temperature sensor (thermistor) resistance.

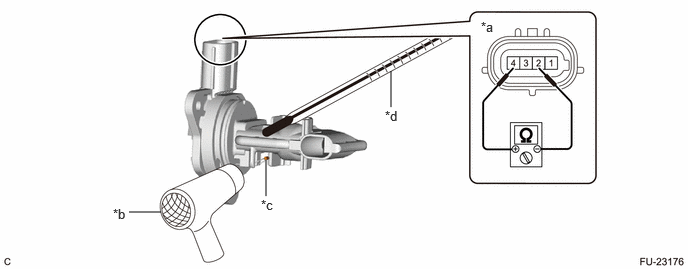

- Gradually increase the temperature and measure the resistance between terminals when the temperature is 20°C (68°F) and 60°C (140°F).
*a Component without harness connected
(Mass Air Flow Meter)*b Hair Dryer *c Intake Air Temperature Sensor (Thermistor) *d Thermometer Standard Resistance
Tester Connection Condition Specified Condition 2 - 4 20°C (68°F) 2.21 to 2.69 kΩ 60°C (140°F) 0.493 to 0.667 kΩ If the resistance is not as specified, replace the mass air flow meter.
