Removal [11/2021 - ]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    Refer to PROCEDURE - Step 1
  2. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [11/2021 - ]

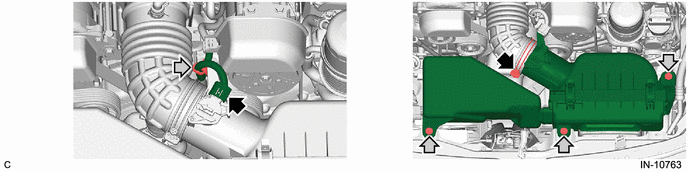

  3. REMOVE AIR CLEANER ASSEMBLY
    1. GTY1049737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

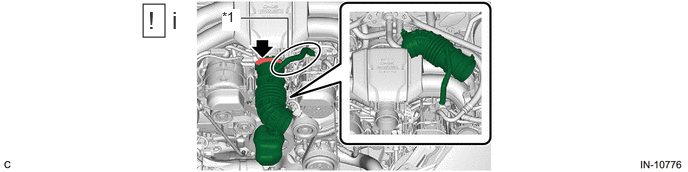

  4. REMOVE NO. 1 AIR CLEANER HOSE
    NOTE:

    Do not disconnect the No. 2 ventilation hose.
    1. GTY1050131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Ventilation Hose - -
      1. Loosen the clamp, remove the No. 1 air cleaner hose, and place it aside so that it does not interfere with the work.
        NOTE:

        Be careful not to pull out the No. 2 ventilation hose.

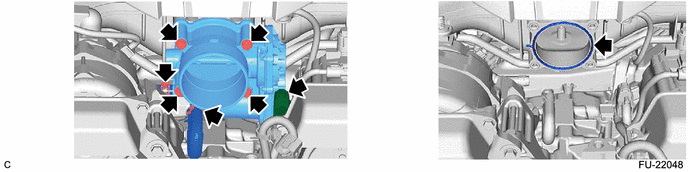

  5. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. GTY1049708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
