Monitor Description
OUTLINE OF DIAGNOSIS
After the engine starts for the first time after the specified period of soaking time has elapsed, diagnose by correlation between mass air flow meter (air temperature sensor) value, engine coolant temperature sensor value and thermistor assembly (ambient temperature sensor) value. Judge as NG when the differences are both above the specified value by comparing between intake air temperature and engine coolant temperature, intake air temperature and ambient air temperature.

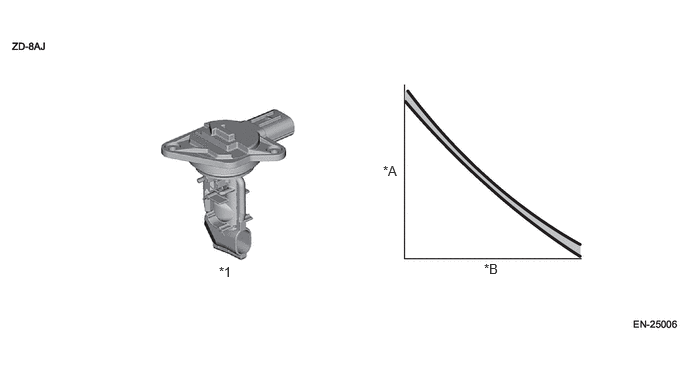

COMPONENT DESCRIPTION
| *A | Resistance value (Ω) | *B | Intake air temperature (°C (°F)) |
| *1 | Mass air flow meter | - | - |
EXECUTION CONDITION
| Secondary parameters | Execution condition |
|---|---|
| Battery voltage | 10.9 V or higher |
| Soaking time | 21600 s or more |
| Block heater judgment | Completed |
| Use of block heater | Not detected |
GENERAL DRIVING CYCLE
Perform the diagnosis only once after the engine starts after a certain period of soaking time.
DIAGNOSTIC METHOD
If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.
Judgment value
| Malfunction Criteria | Threshold Value |
|---|---|
| Intake air temperature 21 sec. after first engine start - Engine coolant temperature at first engine start | Less than value of Map1, or more than value of Map1 |
| Intake air temperature 21 sec. after first engine start - Ambient air temperature 21 sec. after first engine start | Less than value of Map2, or more than value of Map2 |
Map1
| Ambient temperature (°C (°F)) |
-30 (-20) |
30 (86) |
45 (113) |
60 (140) |
|---|---|---|---|---|
| Intake air temperature 21 sec. after first engine start - Engine coolant temperature at first engine start (°C (°F)) |
+/-17 (+/-31) |
+/-17 (+/-31) |
+/-22 (+/-40) |
+/-22 (+/-40) |
Map2
| Ambient temperature (°C (°F)) |
-30 (-20) |
30 (86) |
45 (113) |
60 (140) |
|---|---|---|---|---|
| Intake air temperature 21 sec. after first engine start - Ambient air temperature 21 sec. after first engine start (°C (°F)) |
+/-20 (+/-36) |
+/-20 (+/-36) |
+/-32 (+/-58) |
+/-32 (+/-58) |
Time needed for diagnosis
Less than 1 s
Malfunction indicator light illumination
Illuminates when malfunction occurs in 2 continuous driving cycles.
