Dynamic Torque Control AWD System - Diagnostics - Introduction
>>
Dynamic Torque Control AWD System
>>
System Diagram [12/2019 - 11/2023]
>>
System Diagram [12/2019 - 11/2023]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [12/2019 - 11/2023]

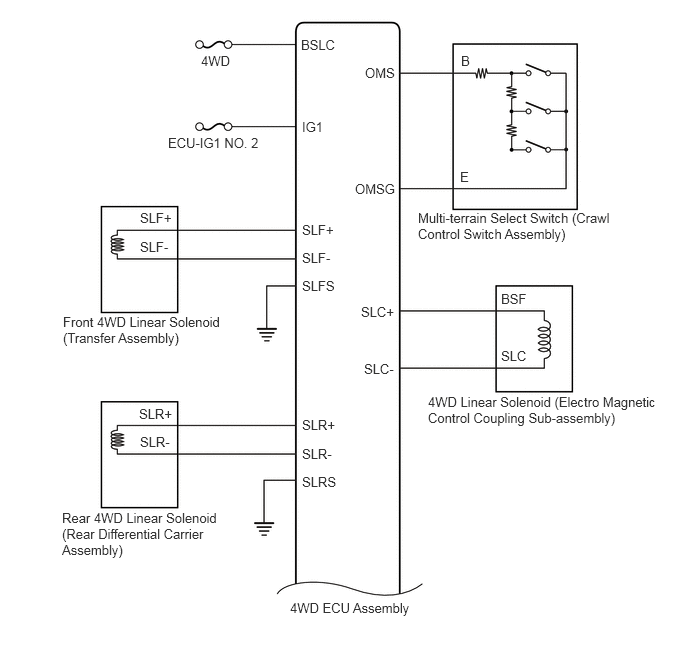

Fig 1: Dynamic Torque Control Awd System Diagram [12/2019 - 11/2023] (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Dynamic Torque Control Awd System Diagram [12/2019 - 11/2023] (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Dynamic Torque Control Awd System Diagram [12/2019 - 11/2023] (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
