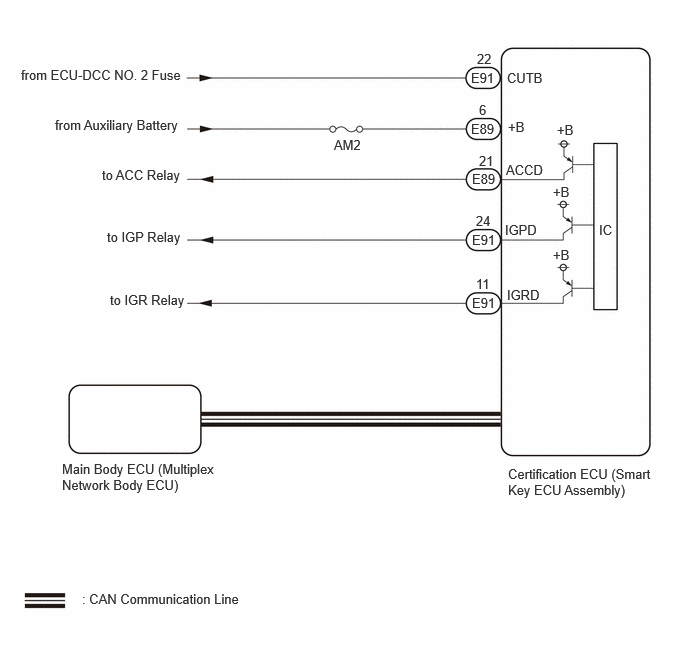

Entry Lock/Unlock Functions and Wireless Functions do not Operate After New/Additional Key ID Registration [02/2024 - ]: Wiring Diagram

GTY1221369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
