Removal [02/2024 - ]: Procedure

Refer to REMOVAL [02/2024 - ]

Refer to PROCEDURE - Step 12

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

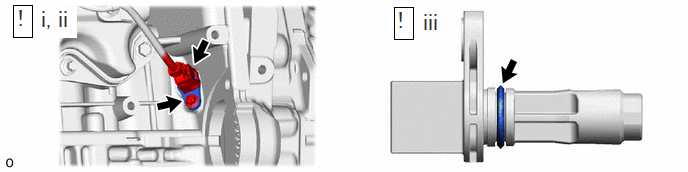

   1. Disconnect the crankshaft position sensor connector.
   2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.

   3. If reusing the crankshaft position sensor, remove the O-ring.
      NOTE:

      • Make sure to only remove the O-ring with bare hands.
      • When removing the O-ring, be careful not to damage the O-ring groove of the crankshaft position sensor.
      • If the O-ring groove of the crankshaft position sensor is damaged, replace the crankshaft position sensor.
