Removal [02/2024 - ]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to REPLACEMENT [02/2024 - ]

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.

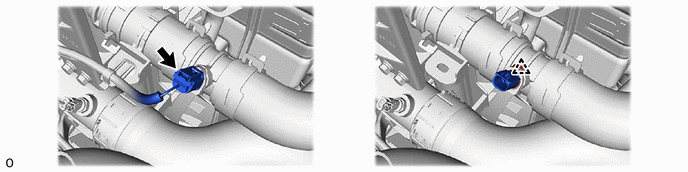

    1. GTY1222338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE E.F.I. ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side)
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.

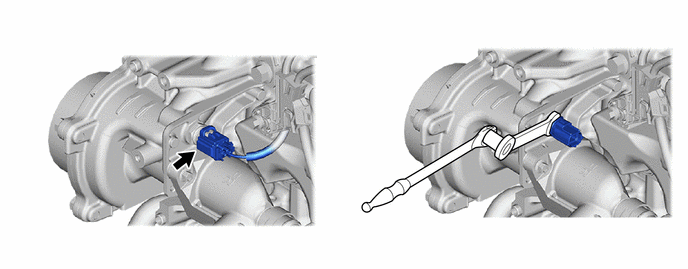

    1. GTY1226919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to REMOVAL [02/2024 - ]

  5. REMOVE E.F.I. ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)

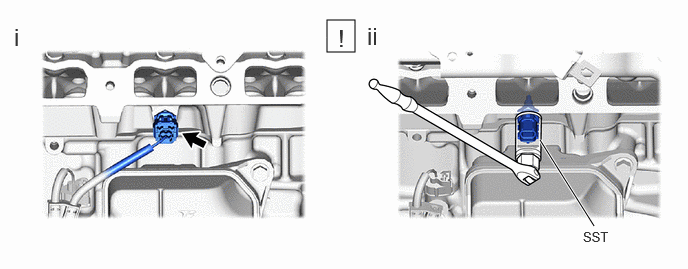

    1. GTY1226703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector.
      2. Using SST, remove the engine coolant temperature sensor.
        • SST: 09817-33191
        NOTE:

        If the engine coolant temperature sensor has been struck or dropped, replace it.

  6. REMOVE ENGINE WITH TRANSMISSION

    Refer to REMOVAL [02/2024 - ]

  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side)
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.

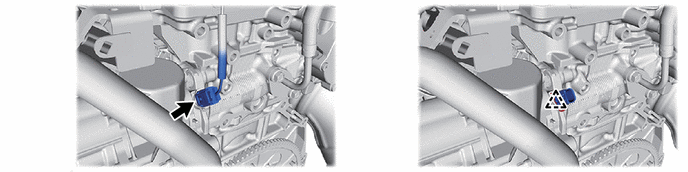

    1. GTY1189747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
