Caution / Notice / Hint
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Knock control sensor | Inspection after repair |
|
Refer to INITIALIZATION [02/2024 - ] |

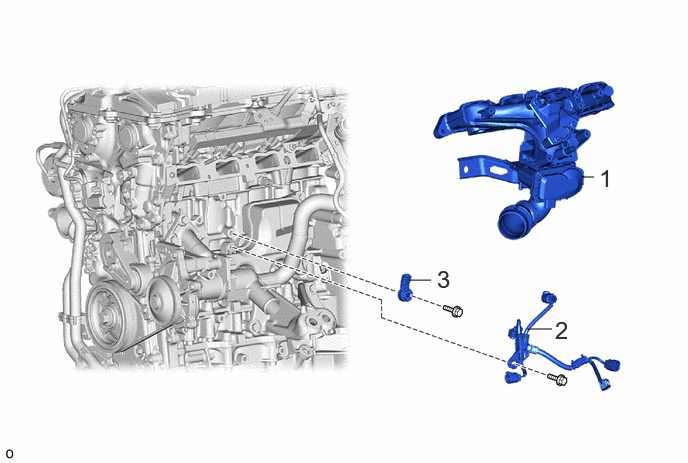

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | INTAKE MANIFOLD WITH THROTTLE BODY | - | - | - | - |
| 2 | SENSOR WIRE | 82219 | - | - | - |
| 3 | KNOCK CONTROL SENSOR | 89615 | See step 3 | - | - |
