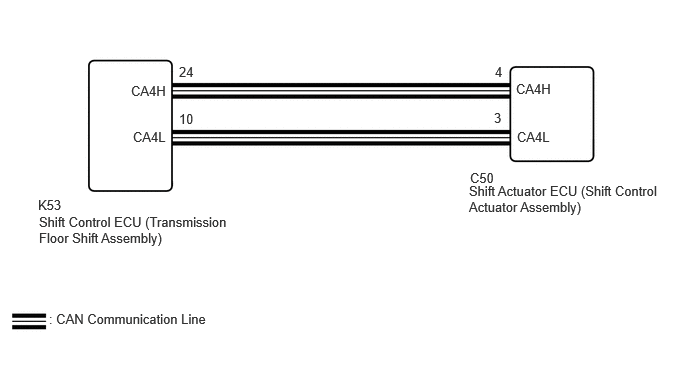

DTC P1753-87: Lost Communication with Gear Shift Control Module "B" (Local-CAN) Missing Message [12/2022 - ]: Wiring Diagram

GTY1158697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
