Parts Location [12/2022 - ]: Illustration

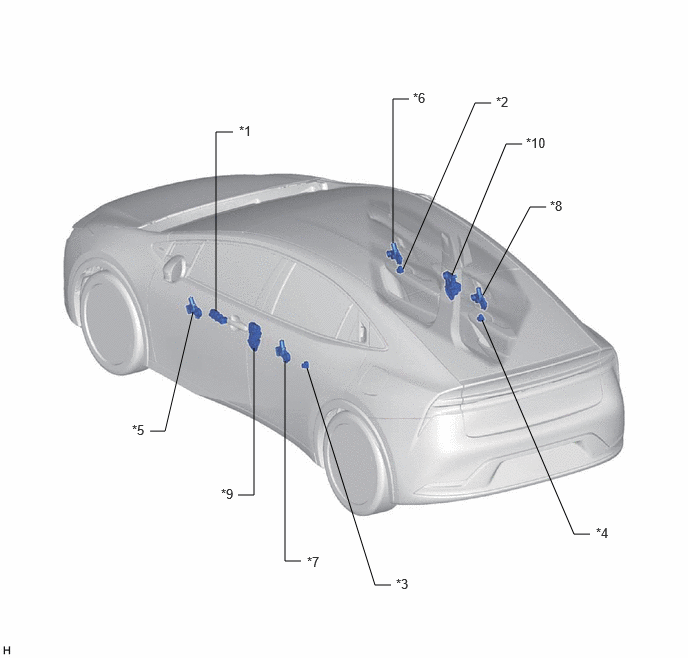

GTY1272433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY *2 POWER WINDOW REGULATOR SWITCH ASSEMBLY
*3 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door) *4 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for RH Door)
*5 POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Driver Door) *6 POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Front Passenger Door)
*7 POWER WINDOW REGULATOR MOTOR ASSEMBLY LH (for Rear LH Door) *8 POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Rear RH Door)
*9 FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH *10 FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH

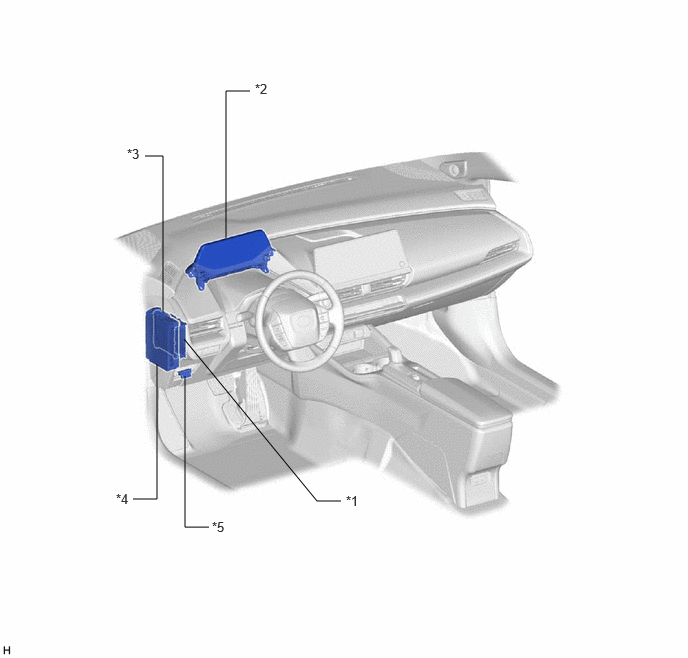

GTY1151464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) *2 COMBINATION METER ASSEMBLY
*3 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *4 POWER DISTRIBUTION BOX ASSEMBLY
- ECU-B NO. 2 FUSE
- DOOR F/L FUSE
- DOOR F/R FUSE
- DOOR R/L FUSE
- DOOR R/R FUSE
*5 DLC3 - -
