DTC P18A7-62: Gear Shift Control Module "A"/"B" IGCT Signal Compare Failure [12/2022 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

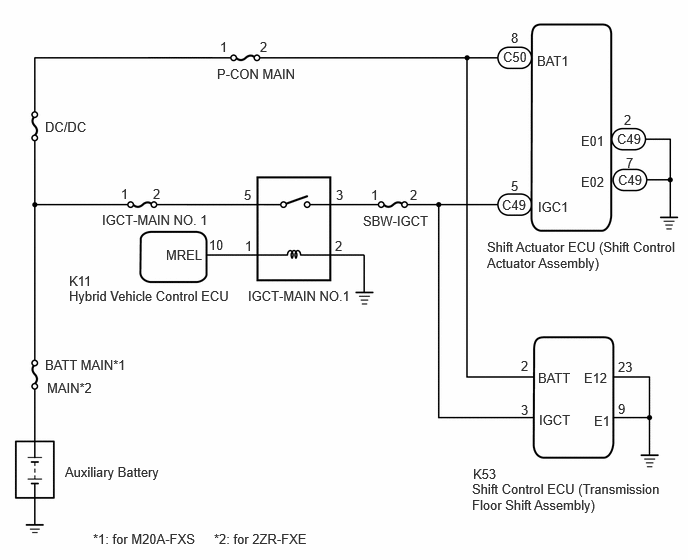

DTC P18A7-62: Gear Shift Control Module "A"/"B" IGCT Signal Compare Failure [12/2022 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
