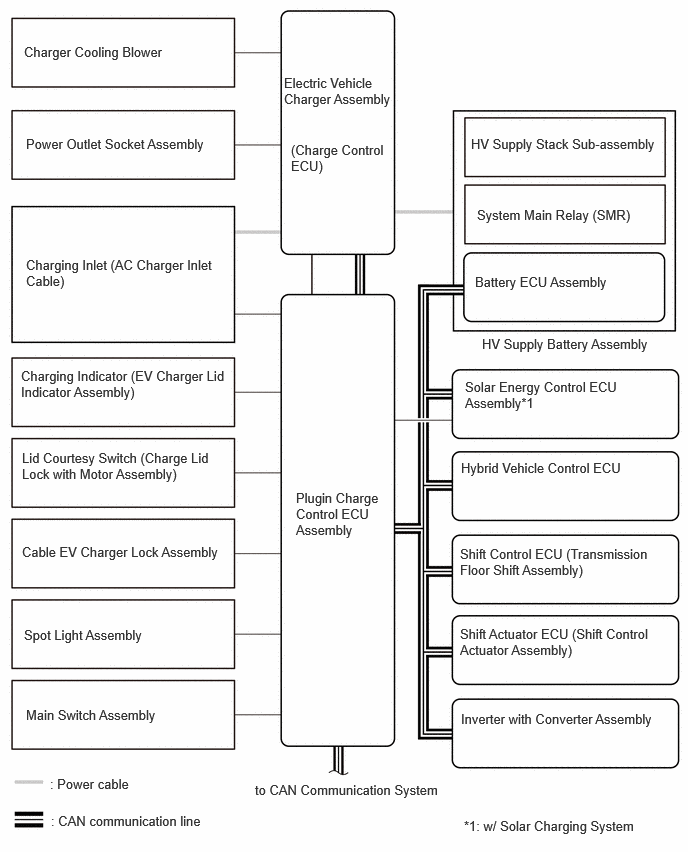

System Diagram [03/2023 - ]

WARNING: This page is about a different variant/trim than selected.
GTY1158089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
