Caution / Notice / Hint

NOTE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [12/2022 - 03/2023] , or refer to PRECAUTION [03/2023 - ]



COMPONENTS (REMOVAL)

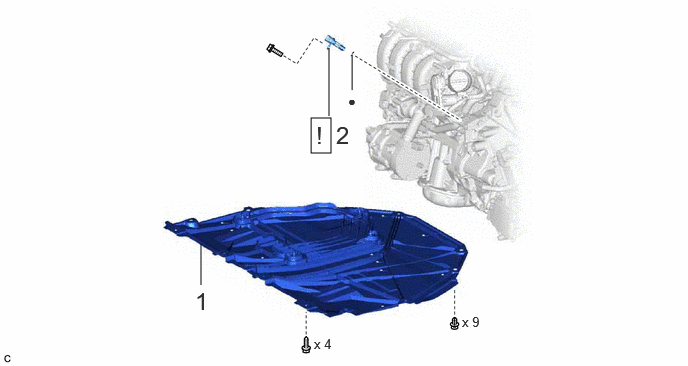

Fig 1: Crankshaft Position Sensor Removal Components
GTY1159146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -
2 CRANKSHAFT POSITION SENSOR 11401G See step  2 - -
• Non-reusable part - -
