Installation [12/2022 - ]: Procedure

INSTALL SPARK PLUG

Refer to PROCEDURE - Step 1

INSTALL IGNITION COIL ASSEMBLY

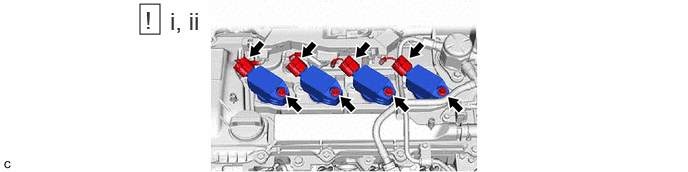

GTY1142192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, install the 4 ignition coil assemblies to the cylinder head cover sub-assembly with the 4 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

NOTE:
If an ignition coil assembly has been struck or dropped, replace it.
Connect the 4 ignition coil assembly connectors.

INSTALL CENTER NO. 2 COWL TOP VENTILATOR LOUVER
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.
  Refer to INITIALIZATION [12/2022 - 03/2023] , or refer to INITIALIZATION [03/2023 - ]
