System Diagram [02/2019 - 08/2020]

  1. WIRELESS DOOR LOCK CONTROL SYSTEM

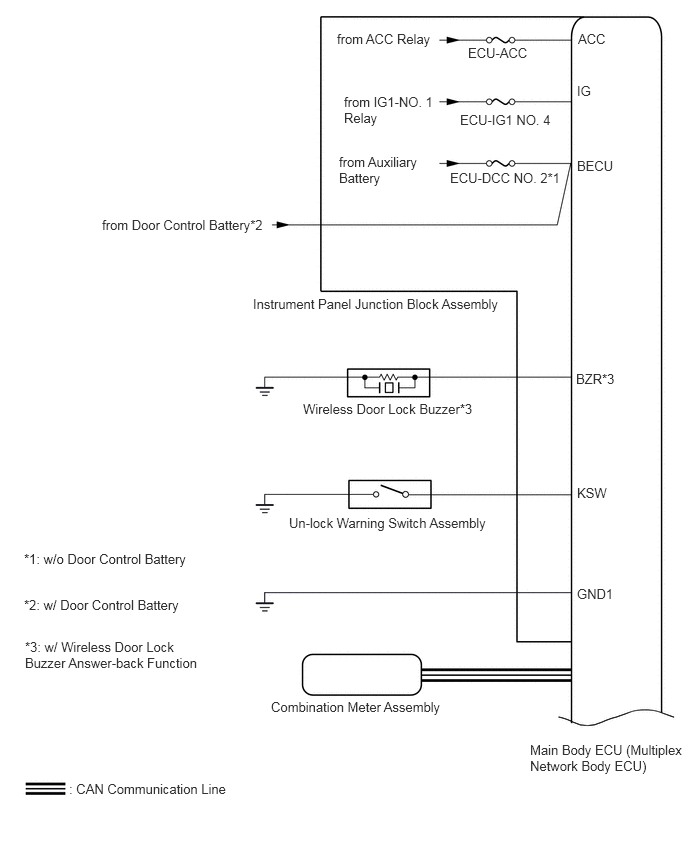

    Fig 1: Wireless Door Lock Control System [02/2019 - 08/2020] (1 Of 2)
    GTY854900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

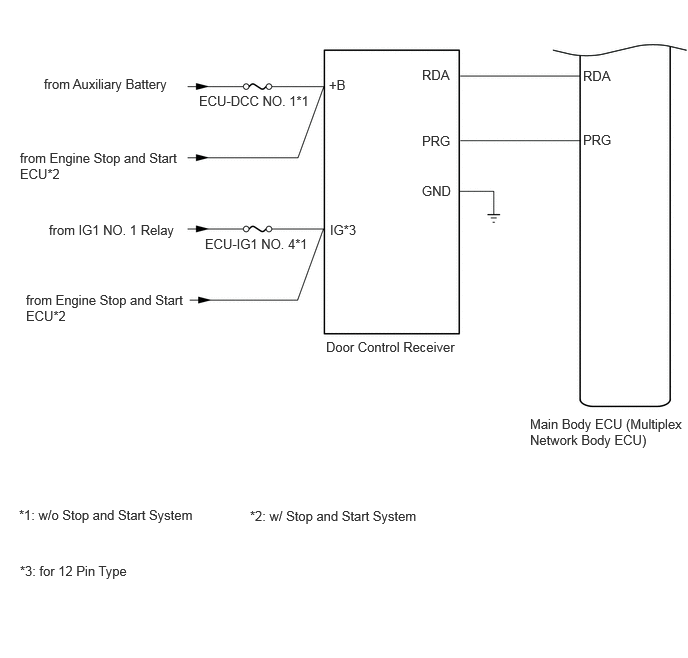

    Fig 2: Wireless Door Lock Control System [02/2019 - 08/2020] (2 Of 2)
    GTY878887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [11/2018 - 08/2020]
