Components [06/2020 - ]

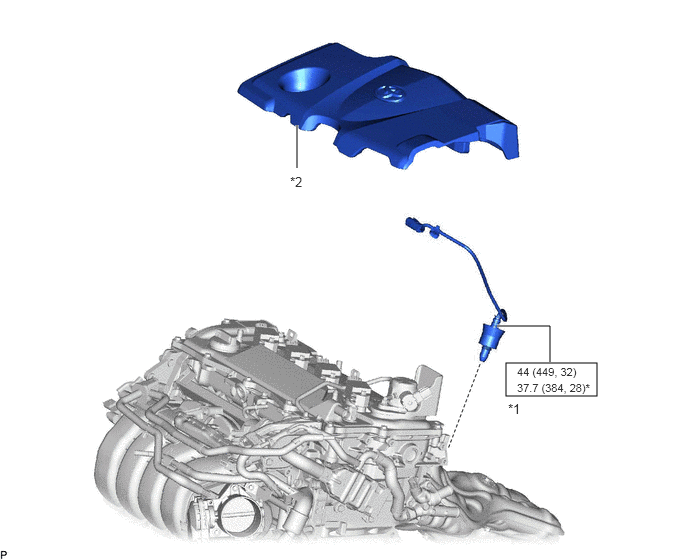

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AIR FUEL RATIO SENSOR (for Sensor 1)	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST

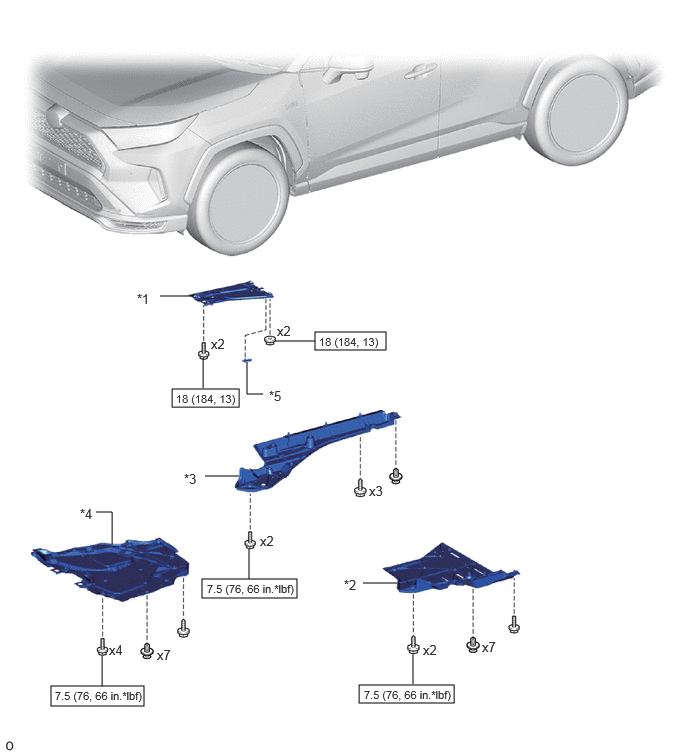

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE UNDER COVER HEAT INSULATOR	*2	FRONT FLOOR COVER LH
*3	FRONT FLOOR COVER RH	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
*5	No. 23 Traction Battery Bracket	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

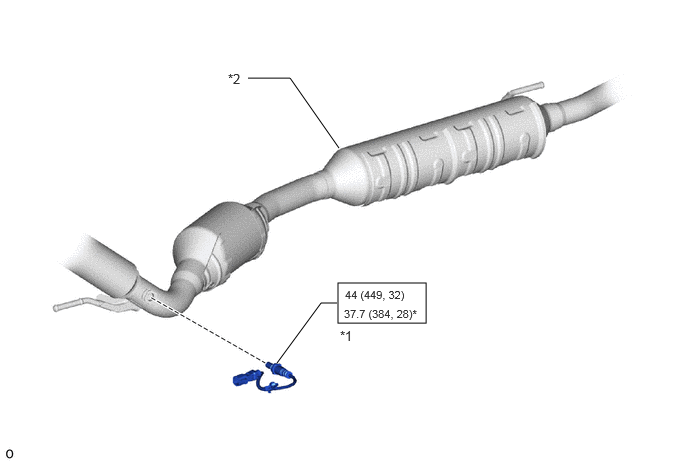

Fig 3: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	AIR FUEL RATIO SENSOR (for Sensor 2)	*2	FRONT EXHAUST PIPE ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with SST
