Components [06/2020 - ]

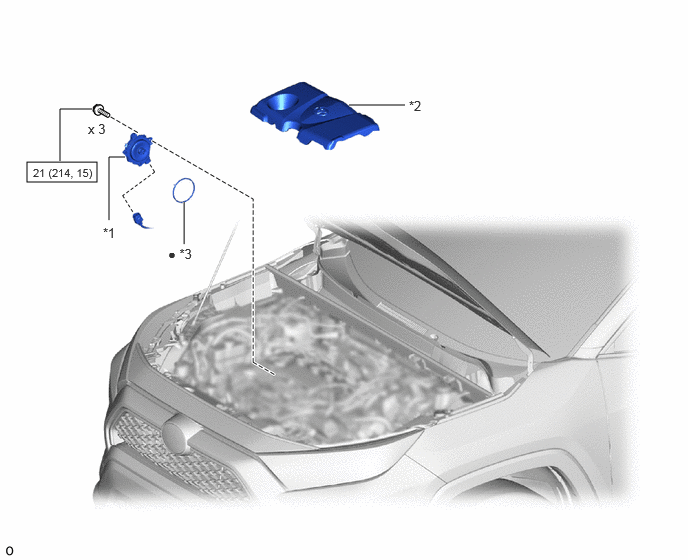

Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications
GTY996706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 CAM TIMING CONTROL MOTOR O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
