Removal [06/2020 - 12/2021]: Procedure

  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

    Refer to REMOVAL [06/2020 - 12/2021]

  3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

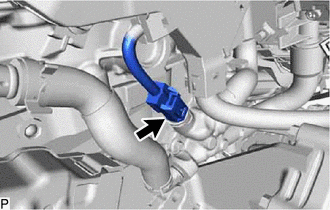

      GTY868592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and engine coolant temperature sensor from the water outlet.
      NOTE:

      If the engine coolant temperature sensor has been struck or dropped, replace it.

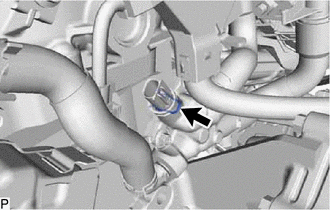

      GTY868593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
