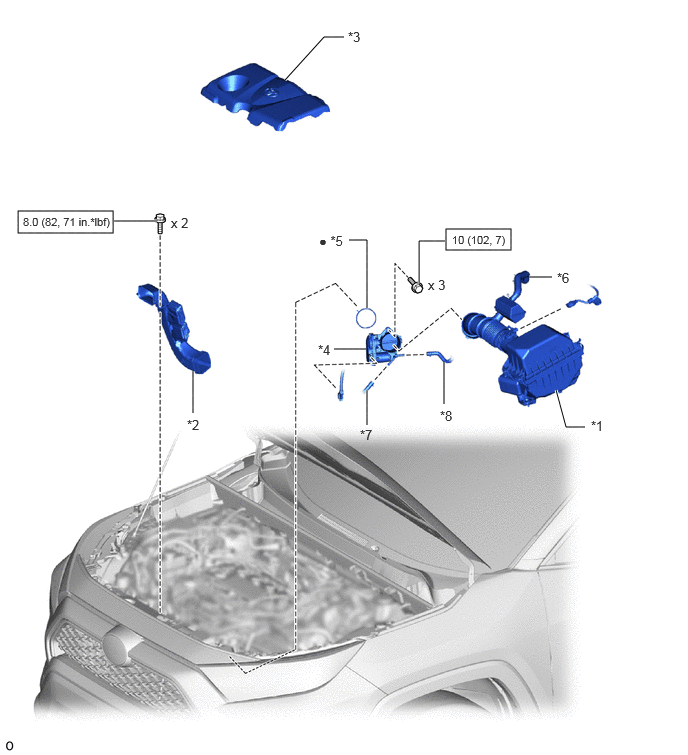

Components [06/2020 - ]
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *5 | THROTTLE BODY GASKET | *6 | NO. 2 PCV HOSE |
| *7 | NO. 5 WATER BY-PASS HOSE | *8 | NO. 6 WATER BY-PASS HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
