Installation [11/2018 - 02/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL LEVEL WARNING SWITCH ASSEMBLY

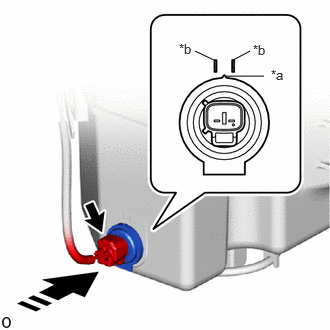

Install the level warning switch assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

ADD WASHER FLUID
See step 6
INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION [11/2018 - 02/2019]
ADJUST FRONT TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)
1. for Gasoline Model:
  Refer to CALIBRATION [11/2018 - 10/2022]
2. for HV Model:
  Refer to CALIBRATION [11/2018 - 10/2022]
