Installation [11/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

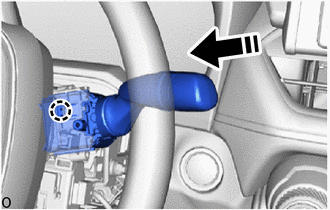

Attach the claw and install the windshield wiper switch assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL UPPER STEERING COLUMN COVER

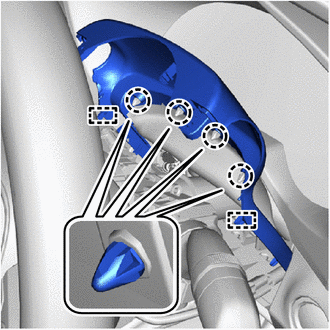

Attach the claw and guide to install the upper steering column cover to the meter hood spacer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

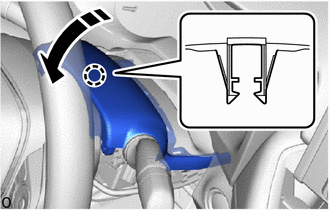

Attach the claw and install the upper steering column cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

INSTALL LOWER STEERING COLUMN COVER

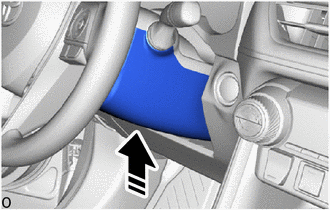

Install the lower steering column cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

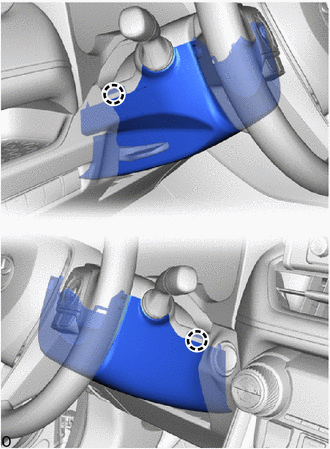

Attach the claw and install the lower steering column cover as shown in the illustration.

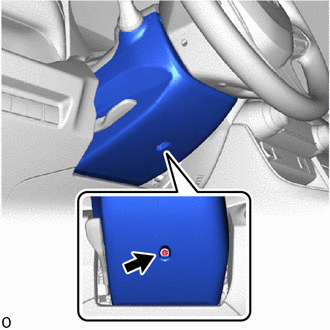

Install the screw.

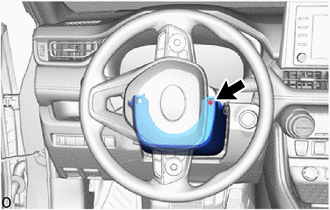

Turn the steering wheel assembly 90° to the left from the straight condition and install the screw shown in the illustration.

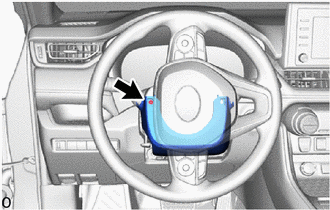

Turn the steering wheel assembly 90° to the right from the straight condition and install the screw shown in the illustration.
