System Diagram [12/2021 - ]

WARNING: This page is about a different variant/trim than selected.

DOOR BUS LINES

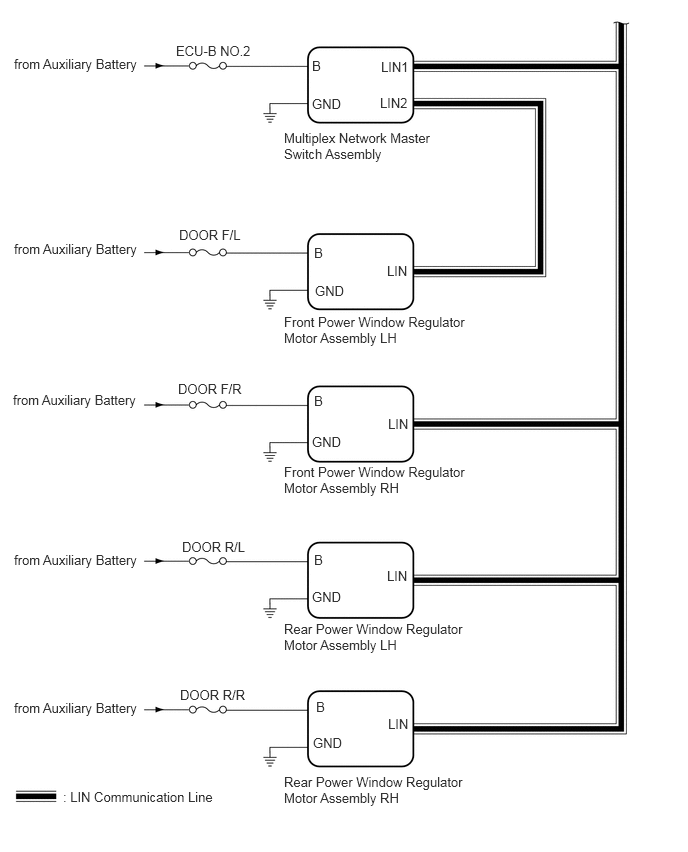

Fig 1: Door Bus Lines System Diagram [12/2021 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

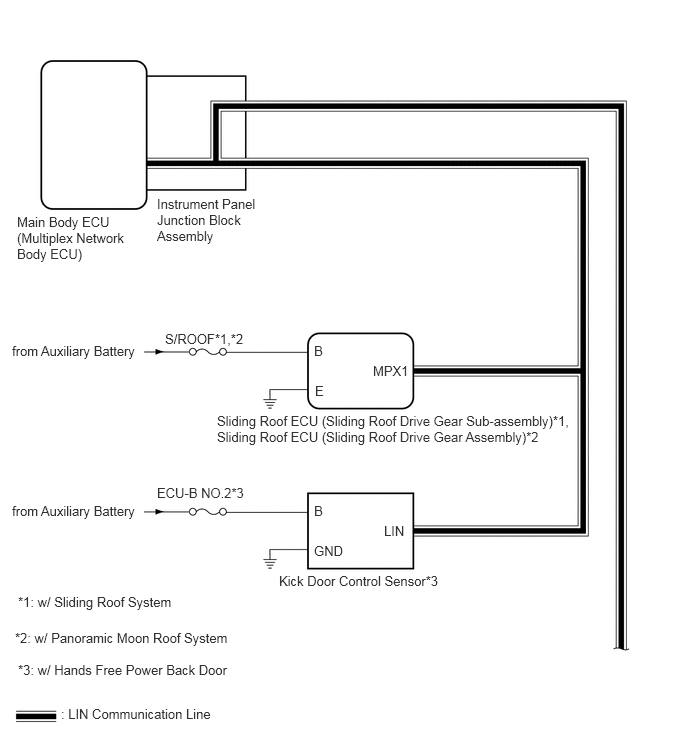

Fig 2: Door Bus Lines System Diagram [12/2021 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CERTIFICATION BUS LINES (w/ Smart Key System)

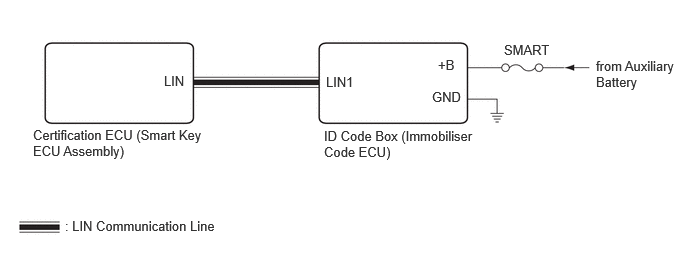

Fig 3: Certification Bus Lines (w/ Smart Key System) [12/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
