Parts Location [11/2018 - 02/2019]: Illustration

WARNING: This page is about a different variant/trim than selected.

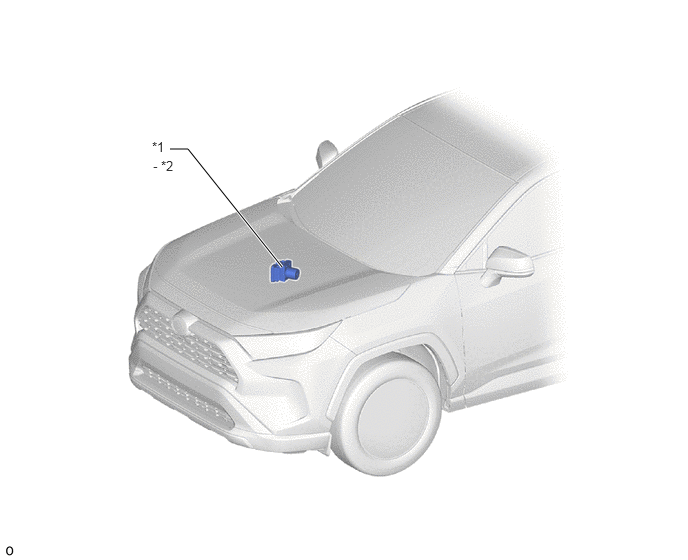

Fig 1: Occupant Classification System Replacement Components (1 Of 2) [11/2018 - 02/2019]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BRAKE ACTUATOR ASSEMBLY

SKID CONTROL ECU

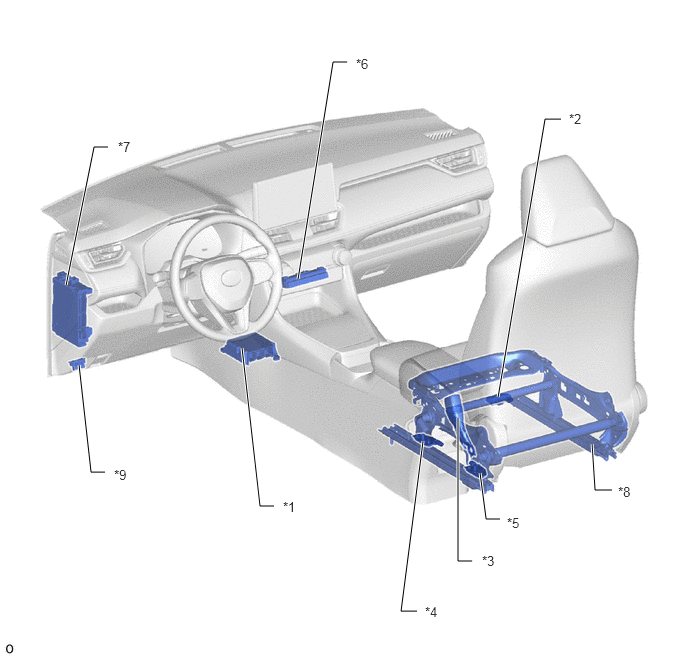

Fig 1: Occupant Classification System Replacement Components (2 Of 2) [11/2018 - 02/2019]

*1	AIRBAG ECU ASSEMBLY - YAW RATE SENSOR	*2	OCCUPANT DETECTION ECU
*3	FRONT SEAT INNER BELT ASSEMBLY RH - FRONT PASSENGER SIDE BUCKLE SWITCH	*4	FRONT OCCUPANT CLASSIFICATION SENSOR LH
*5	REAR OCCUPANT CLASSIFICATION SENSOR LH	*6	TELLTALE LIGHT ASSEMBLY - PASSENGER AIRBAG ON/OFF INDICATOR
*7	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - IG2 NO. 2 RELAY	*8	FRONT SEAT ADJUSTER ASSEMBLY RH
*9	DLC3	-	-
