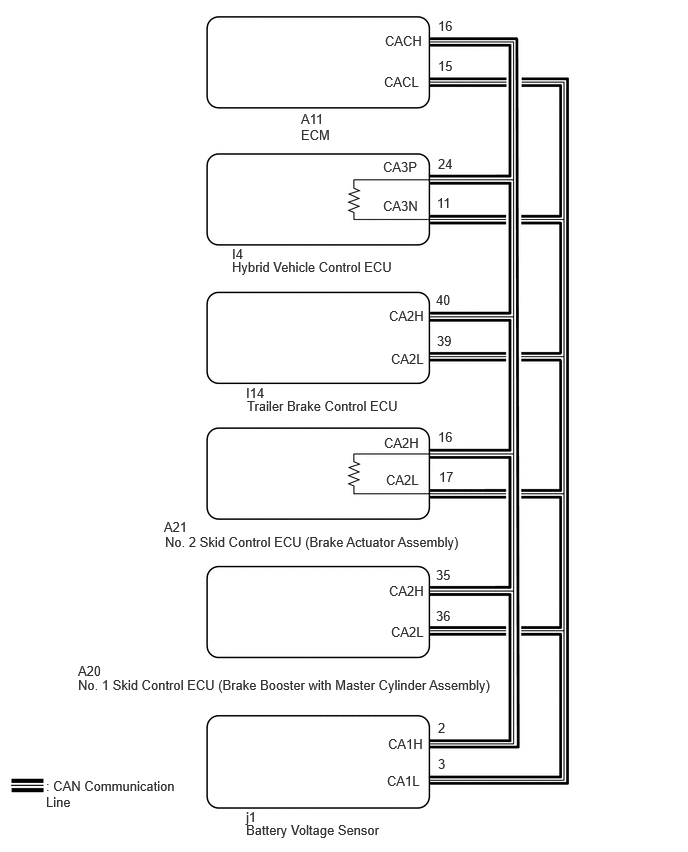

DTC U0137-87: Lost Communication With Trailer Brake Control Module Missing Message [09/2022 - ]: Wiring Diagram

GTY1090473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
