Components [03/2019 - ]

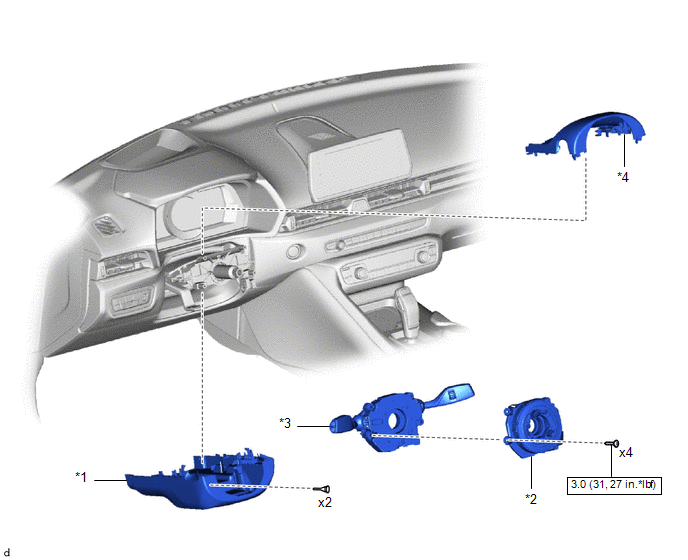

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications [03/2019 - ]
GTY875541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER STEERING COLUMN COVER *2 SPIRAL CABLE SUB-ASSEMBLY
*3 TURN SIGNAL SWITCH ASSEMBLY *4 UPPER STEERING COLUMN COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -
