Removal [03/2019 - ]: Procedure

  1. REMOVE ACCELERATOR PEDAL(W/SENSOR) ROD ASSEMBLY
    1. Unclip the cover (1).

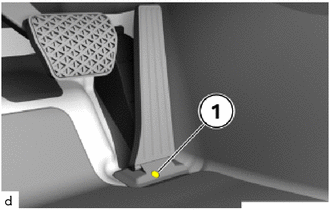

      GTY945927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T10 bolt (1).

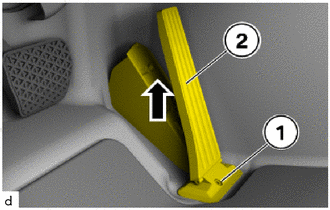

      GTY945928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Feed out accelerator pedal sensor assembly (2) towards the top.
    4. Lift the accelerator pedal sensor assembly (1) at the bottom 2 cm to feed out from the holder (2).

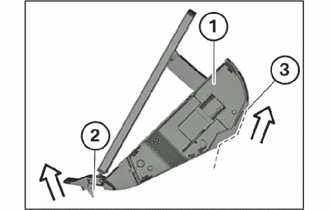

      GTY1146127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Slide the accelerator pedal sensor assembly (1) out of the holder (3) in the direction of arrow (diagonally upwards).
    6. Unlock plug connection (1) and disconnect.

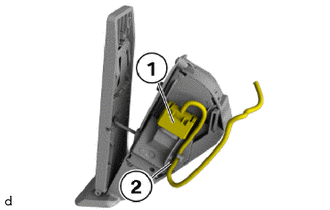

      GTY946292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Feed the wiring harness out of the holder (2).
