Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE AIR PRESSURE SENSOR
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

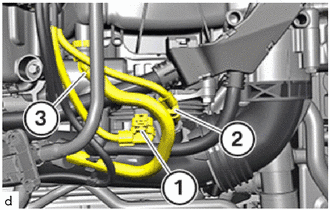

    1. Unlock plug connection (1) and disconnect.
      GTY946186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unlock plug connection (2) and disconnect.
    3. Unlock the engine ventilation line (3) and set it aside.

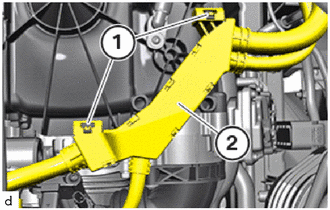

    4. Unlock the locks (1).
      GTY946181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Feed out wiring harness section for the engine (2) slightly and set it aside.
    6. Loosen T25 screw (1).
      GTY946180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the air pressure sensor (2).
