Installation [03/2019 - ]: Procedure

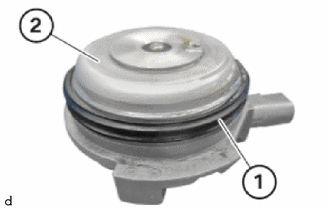

1. Check the seal (1) on actuator (2) for damage and renew the seal, if applicable.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

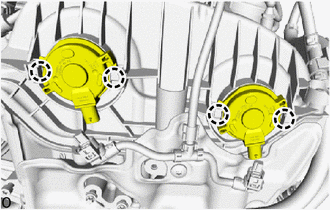

2. Position the cam timing oil control solenoid assemblies at the cylinder head cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The figure shows the rear side of the engine.

3. Position each SST correctly on the cam timing oil control solenoid assembly.
   • SST: 09960-10010
     1. 09962-01000
     2. 09963-00350

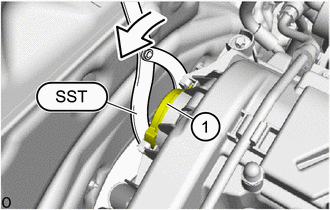

4. Using SST, turn the cam timing oil control solenoid assembly on the exhaust camshaft adjuster (1) in the direction of the arrow until the limit positions rest against the clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09960-10010
     1. 09962-01000
     2. 09963-00350

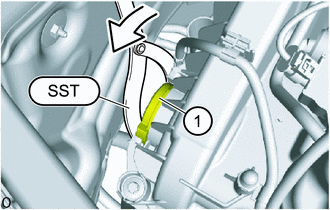

5. Using SST, turn the cam timing oil control solenoid assembly on the intake adjuster (1) in the direction of the arrow until the limit positions rest against the clamps.
   • SST: 09960-10010
     1. 09962-01000
     2. 09963-00350

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

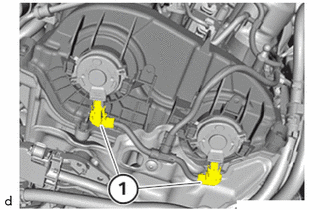

6. Connect both connectors (1) to the cam timing oil control solenoid assemblies and route the cable correctly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The figure shows the rear side of the engine.

Refer to PROCEDURE - Step 37

Refer to PROCEDURE - Step 38

Refer to PROCEDURE - Step 39

Refer to PROCEDURE - Step 40

Refer to INSTALLATION [03/2019 - ]
