Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  2. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

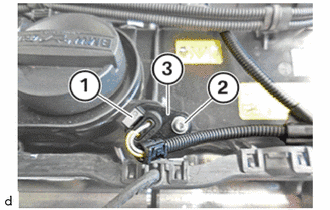

    1. Unlock plug connection (1) and disconnect.
      GTY946416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T20 bolt (2).
    3. Thread out and remove the camshaft position sensor of the intake camshaft (3).
  3. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

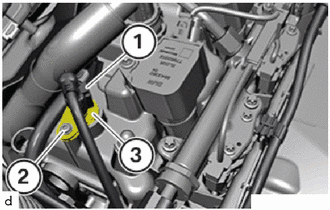

    1. Unlock plug connection (1) and disconnect.
      GTY946399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T20 bolt (2).
    3. Guide the camshaft position sensor of the exhaust camshaft (3) out and remove.
