Removal [03/2019 - ]: Procedure

REMOVE NO. 3 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP

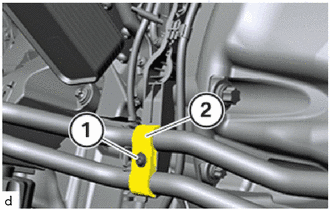

Unscrew the T25 screw (1) and remove the upper section of the No. 3 automatic transmission oil cooler tube clamp (2) for the transmission oil lines.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP

Unclip the cable clip (2).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

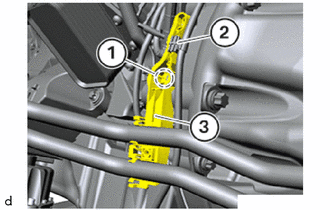

Loosen E8 bolt (1).
Unclip the transmission oil lines from the No. 2 automatic transmission oil cooler tube clamp (3) for the transmission oil lines.
Remove the No. 2 automatic transmission oil cooler tube clamp (3) for the transmission oil lines.

REMOVE CRANKSHAFT POSITION SENSOR

WARNING:

Hot surfaces.
Risk of burning!
- Perform all work only on components that have cooled down.

NOTE:

Electrostatic discharge.
Damage to or destruction of electrical components.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- For additional information see:
  Refer to PRECAUTION [03/2019 - ]

Note the installation location of the crankshaft position sensor.

HINT:

To provide a better overview: Shown with engine removed.

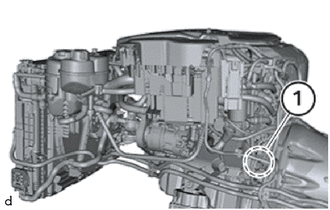

The crankshaft position sensor is located in the marked area (1) on the engine block.

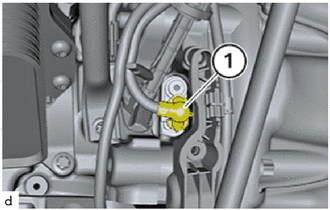

Unlock plug connection (1) and disconnect.

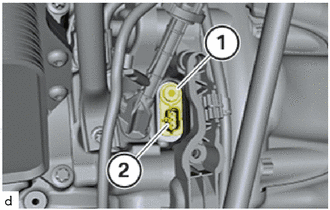

Unscrew the 4 mm hexagon bolt (1) and remove the crankshaft position sensor (2).
