Removal [03/2019 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE OIL TEMPERATURE SENSOR
    WARNING:
    • Hot surfaces.

      Risk of burning!

      • Perform all work only on components that have cooled down.
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

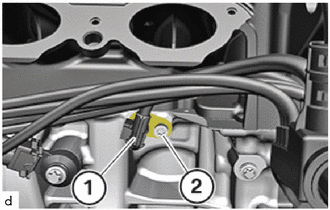

    1. Unlock plug connection (1) and disconnect.
      GTY945915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen T30 bolt (2).

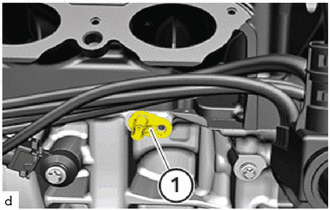

    3. Guide out and remove oil temperature sensor (1).

      HINT:

      Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

      GTY946231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
