Components [03/2019 - ]

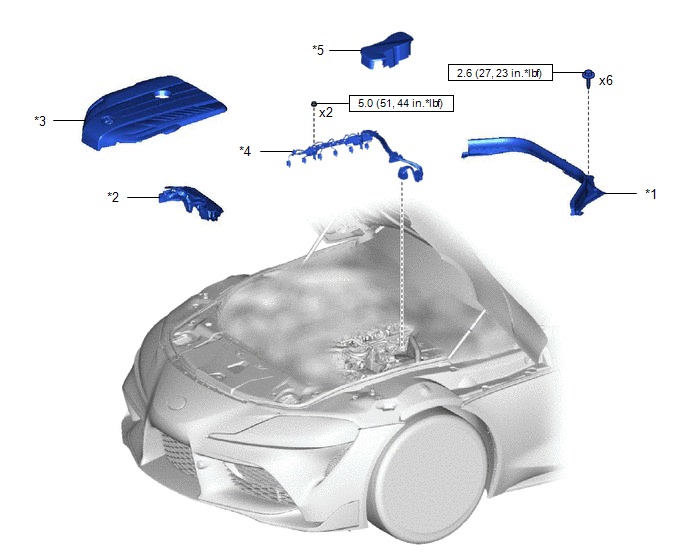

Fig 1: Engine Wire Harness Replacement Components With Torque Specifications [03/2019 - ]
GTY860454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COWL TOP VENTILATOR LOUVER PROTECTOR *2 NO. 1 ENGINE COVER
*3 NO. 1 ENGINE COVER SUB-ASSEMBLY *4 NO. 4 ENGINE WIRE
*5 COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
