Removal [03/2019 - ]: Procedure

REMOVE NO. 1 ENGINE COVER

Detach the No. 1 engine cover (2) in the marked areas (arrows) and twist it to the side at the pivot point (1).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE IGNITION COIL

WARNING:

Hot surfaces.
Risk of burning!
- Perform all work only on components that have cooled down.

NOTE:

Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
- Cover ignition coils using suitable covers when working on the fuel system, if necessary remove them.
- Do not oil or grease the silicone tube of the spark plug connector. The silicone tube is coated with talc to reduce the pulling forces.

Electrostatic discharge.
Damage to or destruction of electrical components.
- Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
- For additional information see:
  Refer to PRECAUTION [03/2019 - ]

Disconnect the connectors (1) of the No. 2 oxygen sensor and the No. 2 air fuel ratio sensor from the cable channel (2) and set aside.

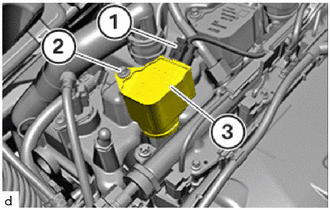

Unlock plug connection (1) and disconnect.
