Removal [03/2019 - ]: Procedure

  1. REMOVE NO. 2 AIR CLEANER HOSE

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    NOTE:
    • Electrostatic discharge.

      Damage to or destruction of electrical components.

      • Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.
      • For additional information see:

        Refer to PRECAUTION [03/2019 - ]

    1. Loosen E10 bolt (1).
      GTY946189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen bolts (2).
    3. Thread the throttle body with motor assembly (2) a little bit out to the front.

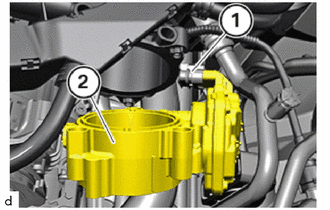

      GTY946223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Unlock plug connection (1) and disconnect.
    5. Remove throttle body with motor assembly (2).
